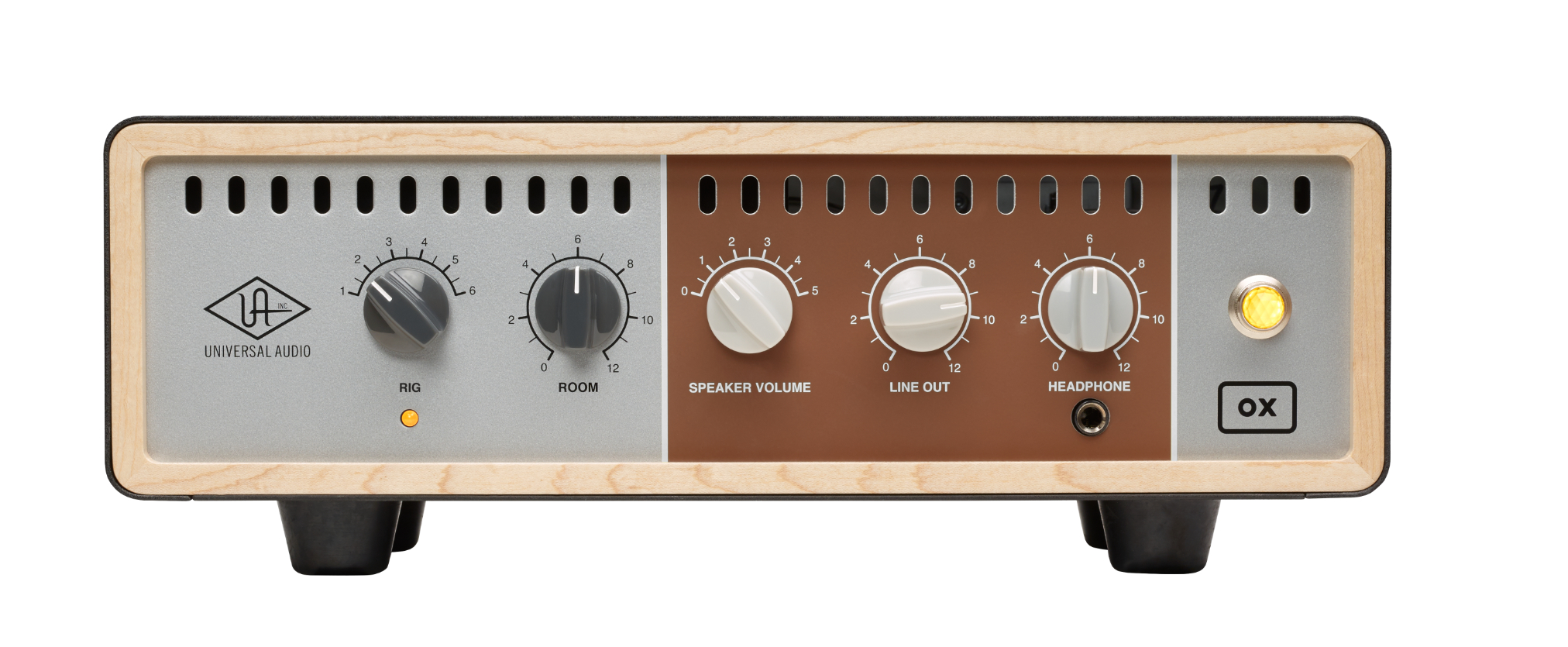

Analogue Loadbox

• Analogue reactive loadbox for guitar tube amplifiers

• Five tuned guitar amp attenuation levels

• Rig control for pre-set microphone and speaker box emulations

• UA Dynamic Speaker Modelling accurately models the behaviour of a speaker and membrane resonances

• Integrated UA EQ compression, delay and reverb effects

• Ohm operation selectable (4, 8, and 16 Ohm)

• Max. power handling: 150 W

• Connectors: Line output 6.3 mm jack balanced

• S/PDIF output

• Headphone output: 6.3 mm jack

• Pairing via WiFi with OX mobile or desktop app to edit and save presets (for Windows 10 and macOS: Sierra or High Sierra)

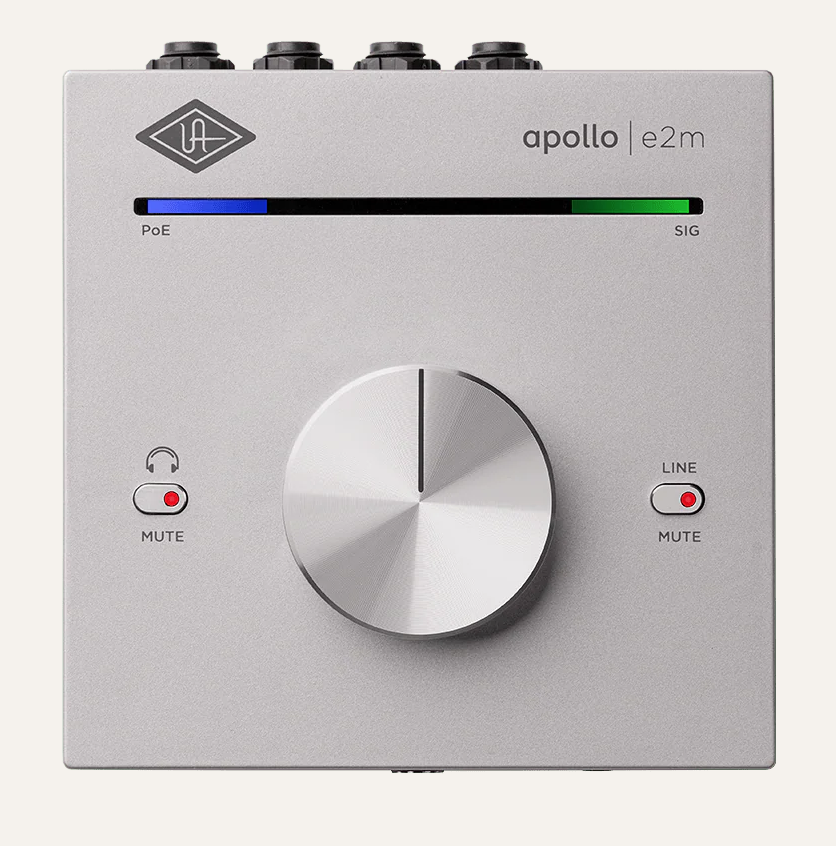

Expand your Dante networked audio rig with I/O and monitor control.

• Add personal monitor control with headphone amplifier and line I/O to your Dante® audio network

• Easily connect synths, amp emulators, external analog gear, and playback devices with Apollo e2m's built-in stereo line inputs

• Use Power over Ethernet (PoE) and built in mic-stand mount to place Apollo e2m anywhere you need monitoring — on stage or in the studio

• Pair with Apollo e1x remote-controllable Unison™ preamps and Apollo x16D for a complete I/O solution

Details

• 2 x 2 stereo headphone amp and line interface over Dante

• Stereo line inputs with professional A/D conversion for external analog gear, keys, synths, amp emulators, and more

• Stereo 1/4″ line outputs, parallel 1/4″ and 1/8″ headphone outputs with shared analog volume control

• Separate mute controls for line and headphone outputs

• Free industry-leading technical support from knowledgeable audio engineers

Specifications

• Line inputs: 120 dB dynamic range, -115 dB THD+N, +18 dBu max. input

• Line outputs: 120 dB dynamic range, -109 dB THD+N, +14 dBu max. output

• Headphone outputs: 119 dB dynamic range, up to 300mW max. power

• Power over Ethernet (PoE 802.3af: 7.3W, 5.2W typical)

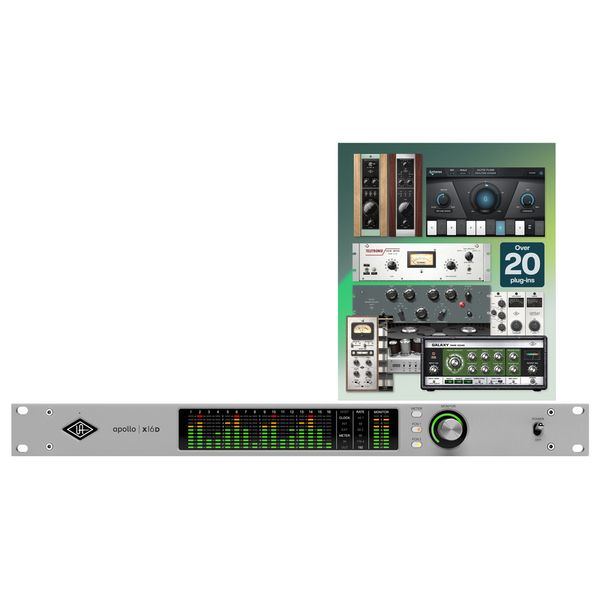

16 x 16 Thunderbolt 3 Audio Interface with Dante

• 24-bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 16 Channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio and others

• LED meter

• 2 Function buttons

• Format: 19"/ 1 U

• Includes Essentials+ Edition plug-in bundle

Connections:

• 2x Monitor output: XLR

• 2x RJ45 for DANTE

• AES/EBU input and output: XLR

• Word clock input and output: BNC

• 2 x Thunderbolt 3

• Input for external power supply

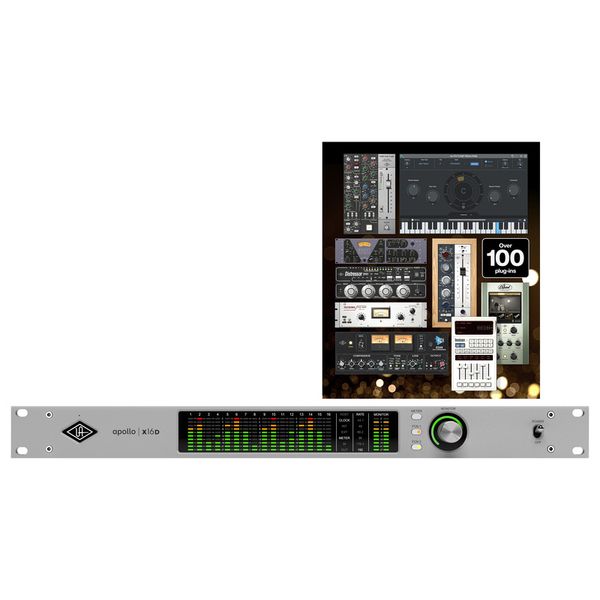

16 x 16 Thunderbolt 3 Audio Interface with Dante

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 16 Channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio and others

• LED meter

• 2 Function buttons

• Format: 19"/ 1 U

• Includes Ultimate+ Edition Plugin-Bundle

Connections

• 2x Monitor output: XLR

• 2x RJ45 for DANTE

• AES/EBU input and output: XLR

• Word clock input and output: BNC

• 2 x Thunderbolt 3

• Connection for external power supply

Put Unison preamps on stage or in your studio with Dante.

• Expand any Dante® network with remote-controlled mic/line preamps using Power over Ethernet (PoE)

• Combine with Apollo x16D interface to get the authentic Unison™ mic preamp sounds of API, Avalon, Manley, Neve, SSL, and more

• Link multiple Apollo e1x units with included coupling bracket and integrated mic-stand mount

• Pair with Apollo e2m stereo headphone amplifier/line interface and Apollo x16D for a complete I/O solution

Details

• Single-channel Unison™ mic/line preamp for Apollo x16D with Dante networked audio connectivity

• Get the sound of iconic mic preamps from API, Neve, Manley, SSL, and more

• Assistive Auto-Gain for effortless level setting

• Unison support for up to 16 Apollo e1x units per Apollo x16D (DSP resource dependant)

• Mic/line input combo jack (XLR mic / 1/4″ line input)

• Control gain, +48V phantom power, polarity inversion, and low cut over the network with UAD Console

• Use with any Dante audio network

• Dante routing directly via Dante Controller or in UAD Console with Apollo x16D

• Sample rate support: 44.1 to 96 kHz and AES67 support @ 48 kHz (set in Dante Controller)

• Dante Device Lock (set in Dante Controller)

• Included coupling bracket to securely link multiple Apollo e1x preamps

• Threaded 5/8″ mic stand mount

• Free industry-leading technical support from knowledgeable audio engineers

Specifications

• Gain range: 10 to 65 dB

• Mic input: 120 dB dynamic range, -115 dB THD+N, +25 dBu max. input

• Line input: 119 dB dynamic range, -112 dB THD+N, +24 dBu max. input

• Power over Ethernet (PoE 802.3af: 4W, 3W typical)

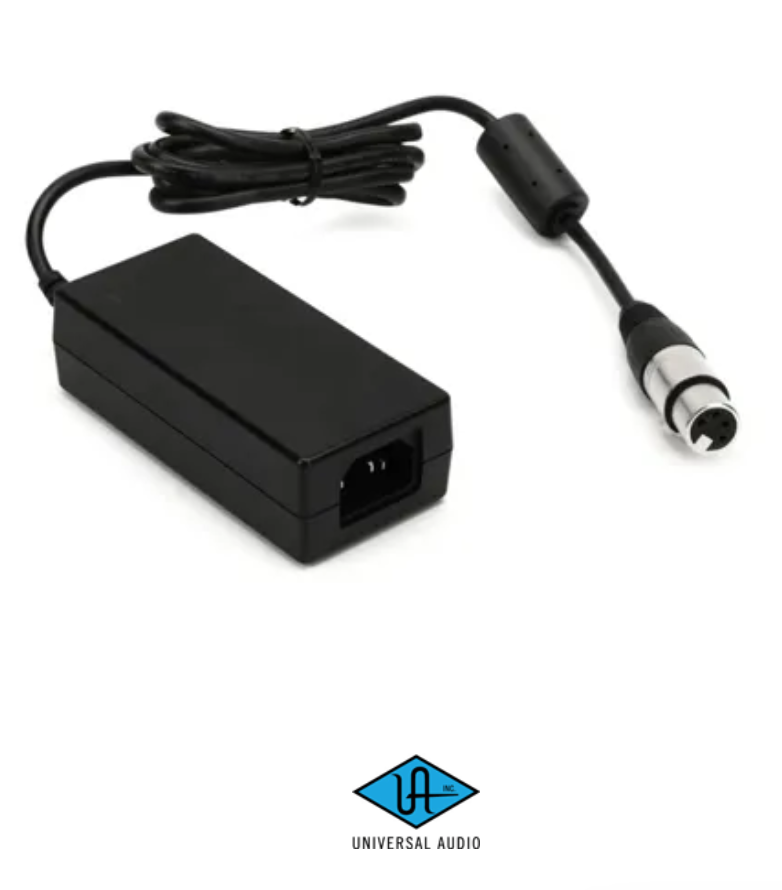

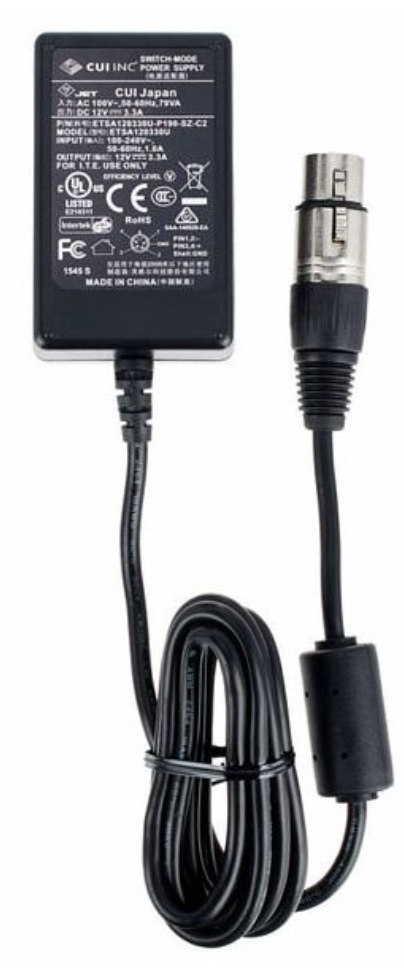

Replacement power supply

• For UA Satellite Thunderbolt and USB

• Input: AC100-240 V, 50/60 Hz

• 12V DC / 3.3A

• UA No. 11-40510

UA PSU Apollo Rack Replacement Power Supply for APX6, APX8, APX8P, APX16, APX16D (EU) – UA

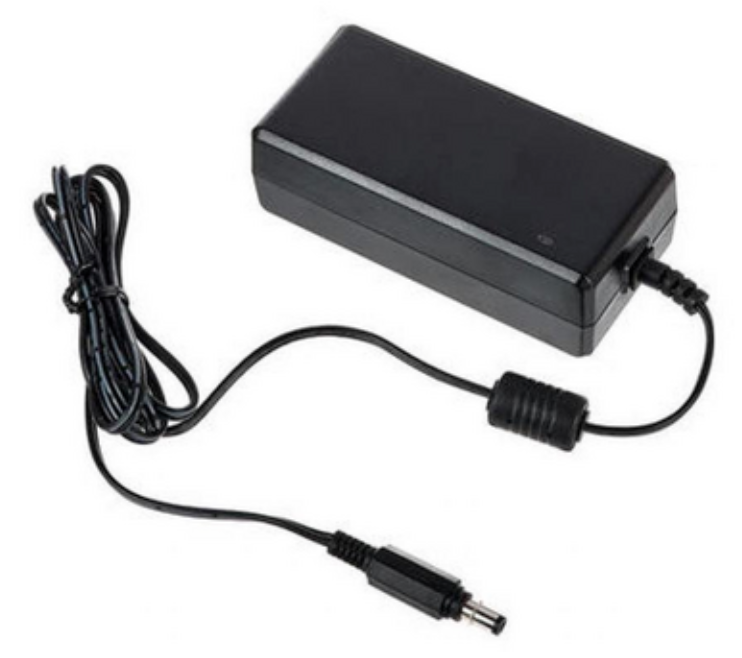

Replacement Power Supply

• For UA Apollo Twin X Duo/Quad and X4

• 12V DC / 4.2 A

• Connector: 2.1 mm x 5.5 mm

• Centre positive

Key Features

• Ensure seamless power for your Universal Audio gear with this 12VDC power supply.

• Compatible with OX Amp Top & UAD Satellite Thunderbolt for studio-quality audio.

• Get stable, reliable performance with a robust 3000mA output for your audio interface.

• Wide input voltage range (100-240V) means worry-free use, no matter where you record!

• Featuring a secure 4-pin XLR connector, enjoy stable connectivity for your setup.

• A genuine Universal Audio power supply guarantees optimal performance and longevity.

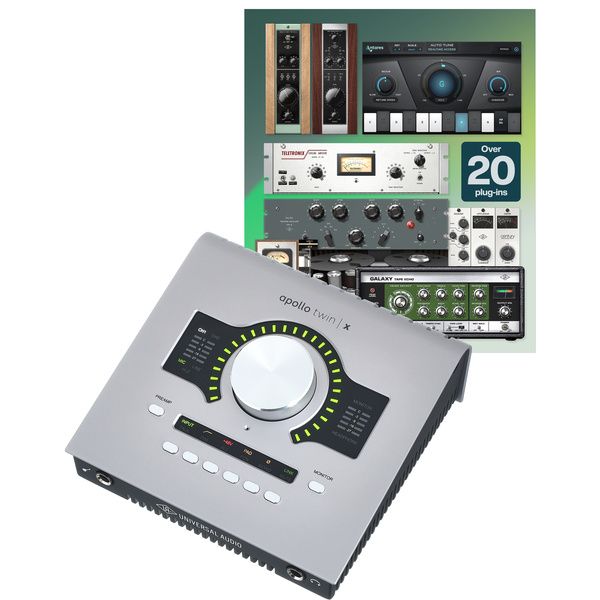

10 x 6 Thunderbolt 3 Audio Interface

• With UAD-2 Duo processor

• 24 Bit / 192 kHz AD/DA converter

• 2 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Built-in talkback microphone

• Dynamic range: 127 dB

• Monitor functions with controls for mono, mute, DIM and ALT

• Design: Desktop

• For Mac OS and Windows

• Includes Essentials+ Plug-in Bundle

Connectors:

• Microphone / line combo inputs: 2 x XLR / 6.3 mm jack

• Hi-Z instrument input: 6.3 mm jack

• Line outputs: 2 x 6.3 mm jack

• Monitor outputs: 2 x 6.3 mm jack

• ADAT/SPDIF optical input

• Stereo headphone output: 6.3 mm jack

• Thunderbolt 3 connection (Thunderbolt cable not included)

• Input for external power supply

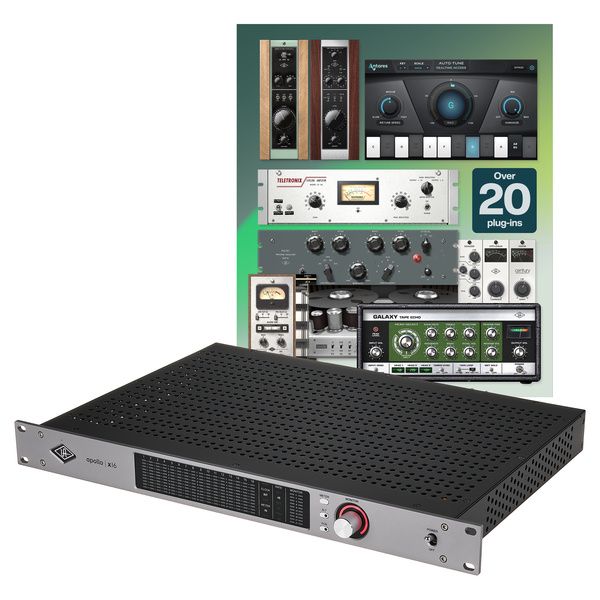

18 x 20 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• Auto Gain function

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support of surround formats up to 7.1 with speaker calibration and downmix

• Dual Crystal Clocking for a low-jitter environment and pure, artefact-free recordings as well as stable stereo imaging

• Includes Essentials+ Plug-in Bundle for Mac/Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19"/1U

• Includes external power supply unit

Connectors:

• 16 Line inputs Sub-D25

• 2 Monitor outputs XLR

• 16 Line outputs Sub-D25

• AES/EBU input and output

• Word Clock input and output BNC

• 2 Thunderbolt 3

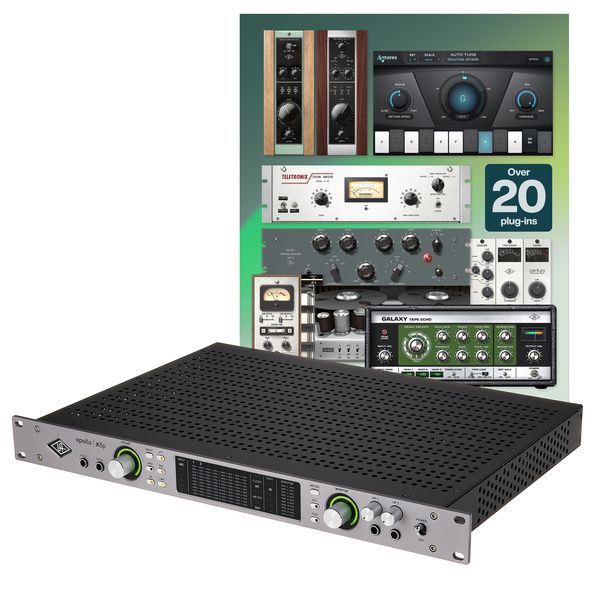

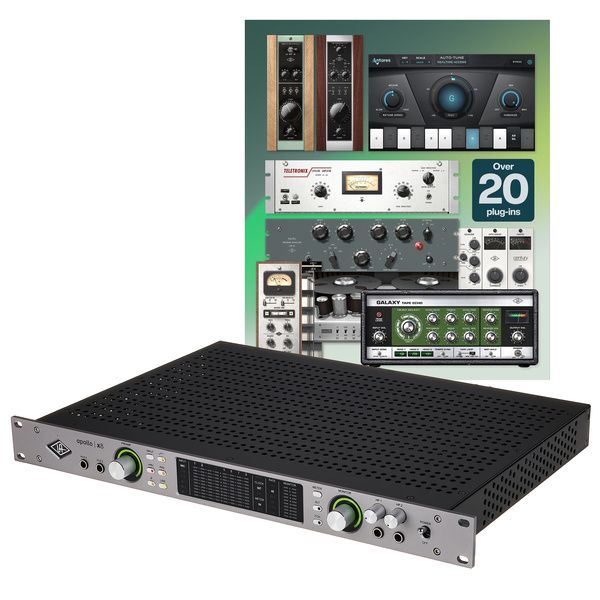

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 8 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support of surround formats up to 7.1 with speaker calibration and downmix

• Dual Crystal Clocking for low-jitter environment and pure, artifact-free recordings as well as stable stereo imaging

• For Mac and Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19" / 1U

• Includes Essentials+ plug-in bundle and external power supply

Connectors:

• Microphone / line combo inputs: 8 x XLR / 6.3 mm jack

• Hi-Z inputs: 2 x 6.3 mm jack

• Line inputs: 8 x Sub-D25

• Monitor outputs: 2 x 6.3 mm jack

• Line outputs: 8 x Sub-D25

• 2 x ADAT inputs and outputs

• BNC Word clock input and output

• Stereo headphone connections: 2 x 6.3 mm jack

• 2 x Thunderbolt 3 sockets

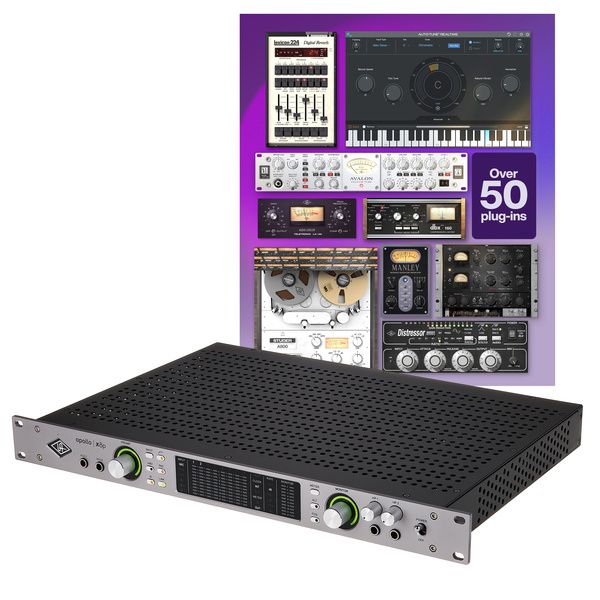

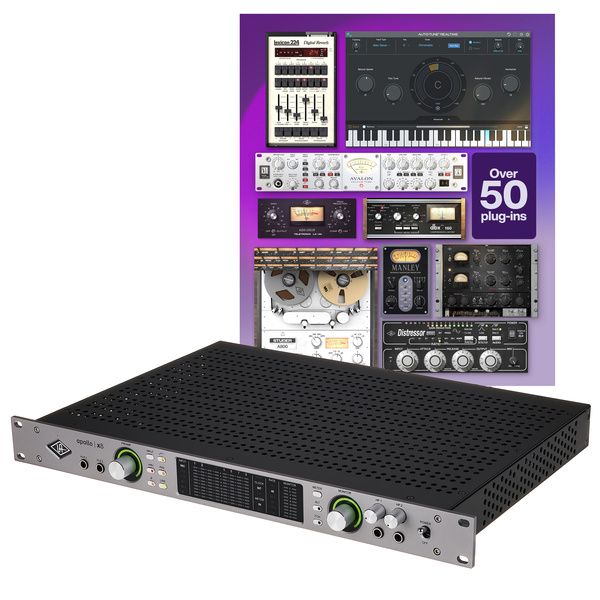

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 8 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support for surround formats up to 7.1 with speaker calibration and downmix

• Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging

• For Mac and Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19" / 1 U

• Includes Studio+ plug-in bundle and external power supply

Connectors:

• Microphone / line combo inputs: 8 x XLR / 6.3 mm jack

• Hi-Z inputs: 2 x 6.3 mm jack

• Line inputs: 8 x Sub-D25

• Monitor outputs: 2 x 6.3 mm jack

• Line outputs: 8 x Sub-D25

• 2 x ADAT inputs and outputs

• BNC Word clock input and output

• Stereo headphone connections: 2 x 6.3 mm jack

• 2 x Thunderbolt 3 sockets

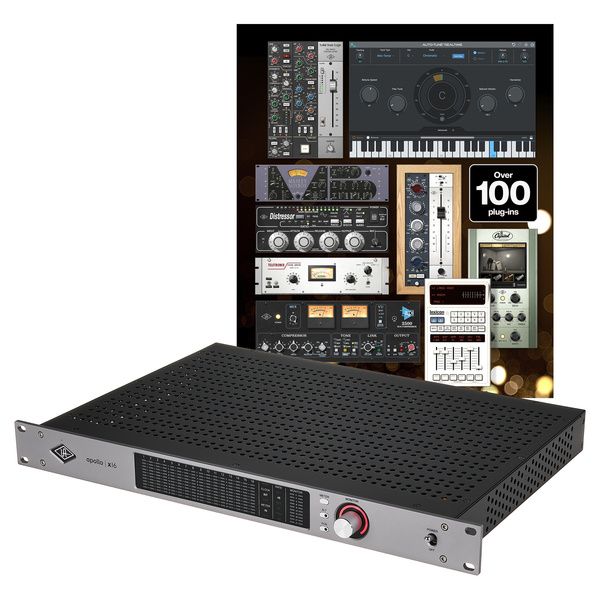

18 x 20 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• Auto Gain function

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support of surround formats up to 7.1 with speaker calibration and downmix

• Dual Crystal Clocking for low-jitter environment and pure, artifact-free recordings as well as stable stereo imaging

• Includes Ultimate+ Plug-in Bundle for Mac/Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19"/ 1U

• Includes external power supply

Connectors:

• 16 Line inputs Sub-D25

• 2 Monitor outputs XLR

• 16 Line outputs Sub-D25

• AES/EBU input and output

• Word Clock input and output BNC

• 2 Thunderbolt 3

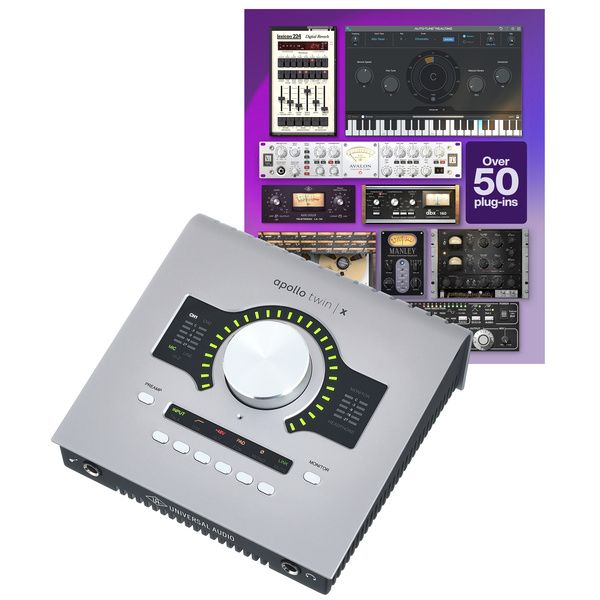

10 x 6 Thunderbolt 3 Audio Interface

• With UAD-2 Duo processor

• 24 Bit / 192 kHz AD/DA converter

• 2 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Built-in talkback microphone

• Dynamic range: 127 dB

• Monitor functions with controls for mono, mute, DIM and ALT

• Design: Desktop

• For Mac OS and Windows

• Includes Studio+ Plug-in Bundle

Connectors:

• Microphone / line combo inputs: 2 x XLR / 6.3 mm jack

• Hi-Z instrument input: 6.3 mm jack

• Line outputs: 2 x 6.3 mm jack

• Monitor outputs: 2 x 6.3 mm jack

• ADAT/SPDIF optical input

• Stereo headphone output: 6.3 mm jack

• Thunderbolt 3 connection (Thunderbolt cable not included)

• Input for external power supply

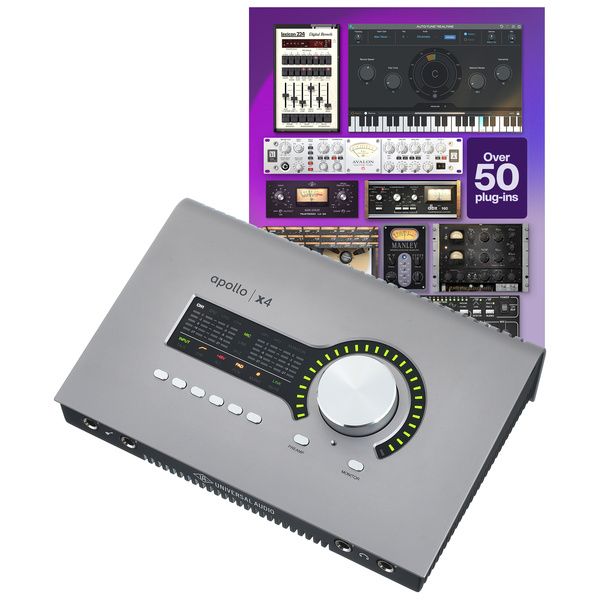

12x18 Thunderbolt 3 Audio Interface with UAD-2 Quad Processor

• 24 Bit / 192 kHz AD/DA converter

• 4 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Built-in talkback microphone

• Dynamic range: 127 dB

• Monitor functions with controls for mono, mute, DIM and ALT

• Design: Desktop

• Dimensions (W x D x H): 233 x 66 x 151 mm

• Weight: 1.46 kg

• Includes Studio+ Plug-in Bundle for Mac OS and Windows

• Suitable case: Art. 495524 (not included)

Connectors:

• 4 Microphone / line combo inputs: XLR / jack 6.3 mm

• 2 Hi-Z instrument inputs: 6.3 mm jack

• 4 Line outputs: 6.3 mm jack

• 2 Monitor outputs: 6.3 mm jack

• ADAT/SPDIF input and output: optical

• 2 Stereo headphone outputs: 6.3 mm jack

• Thunderbolt 3 connection

• Input for external power supply

Note: Thunderbolt cable not included

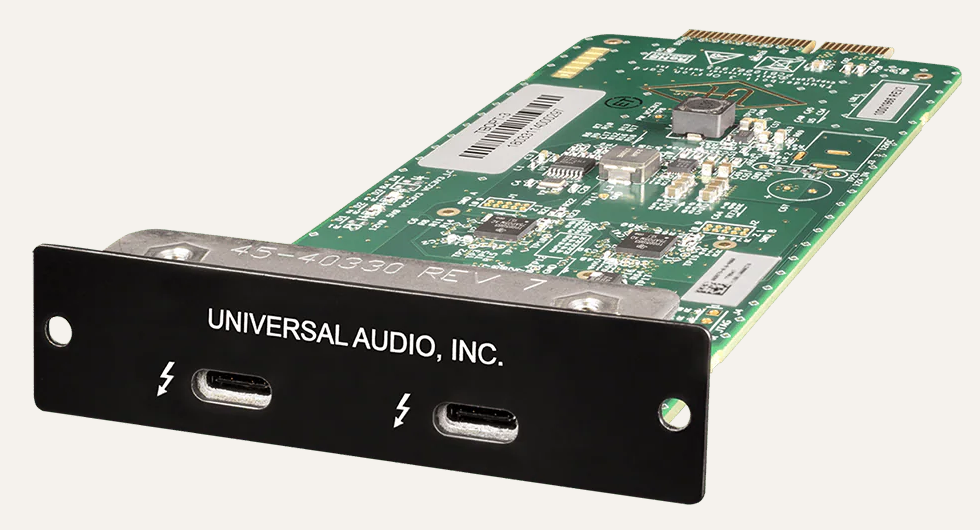

Add ultra high bandwidth to your Apollo interface.

• Add the latest generation Thunderbolt 3 connectivity to your rackmount Apollo interface

• Get two Thunderbolt 3 ports for daisy-chaining Apollos or other peripherals

• Supply 40 Gbps bandwidth for peripherals including 4K displays and hard drives

• Provide 15W bus power to downstream Thunderbolt devices

Details

• User-installable Thunderbolt 3 Option Card for all Apollo rackmount models

• Enables Thunderbolt 3 connectivity for Apollo and Apollo 16 FireWire models

• Get compatibility with Universal Audio's free LUNA Recording System

• Blazing-fast PCIe audio drivers and rock-solid performance versus FireWire

• Two Thunderbolt 3 ports for convenient daisy-chaining of Apollos or peripherals

• Provides bus power to downstream Thunderbolt 3 peripherals

• Easy user installation – tool and instructions included

• Thunderbolt 3 cable sold separately

• To see full system requirements, click here.

18 x 24 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 4 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support of surround formats up to 7.1 with speaker calibration and downmix

• Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging

• For Mac and Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19" / 1U

• Includes Studio+ plug-in bundle and external power supply

Connectors:

• Microphone inputs: 4 x XLR

• Hi-Z inputs: 2 x 6.3 mm jack

• Line inputs: 8 x 6.3 mm jack

• Monitor outputs: 2 x 6.3 mm jack

• Line outputs: 8 x 6.3 mm jack

• S/PDIF input and output coaxial

• 2 x ADAT input and output

• BNC Word clock input and output

• Stereo headphone connections: 2 x 6.3 mm jack

• 2 x Thunderbolt 3

The Universal Audio Apollo x8 Gen2 Essentials+ is a professional 18 x 24 Thunderbolt 3 audio interface engineered for elite-class 24‑bit/192 kHz conversion, Dual‑Crystal Clocking and HEXA (6‑core) SHARC DSP for real‑time UAD plug‑in processing. Four Unison mic preamps with Auto Gain, +48V phantom, pad, low‑cut and phase reverse give authentic analog coloration at tracking, while two Hi‑Z inputs, eight line ins/outs, ADAT, S/PDIF and BNC word clock deliver flexible routing for modern studios. A full monitor controller with alternate speaker switching, built‑in talkback, Dim/Mono assignable function and LED meters speeds workflow, and immersive 7.1 support with speaker calibration ensures accurate mixes. Rackmountable at 1U, Thunderbolt 2 compatible via adapter, cascadable up to four Apollos and shipped with the Essentials+ plug‑in bundle and external power supply—ideal for pro project and commercial studios.

• 18 x 24 Thunderbolt 3 audio interface (24‑bit / 192 kHz)
• HEXA Core (6‑core) SHARC DSP for real‑time UAD processing
• 4 Unison™ microphone preamps with Auto Gain, +48 V phantom, Pad, Low‑cut and Phase Reverse
• 2 Hi‑Z instrument inputs, 8 x 1/4" line inputs, 8 x 1/4" line outputs, 2 x monitor outs
• 2 x Thunderbolt 3 connectors; compatible with Thunderbolt 2 via adapter
• S/PDIF coaxial I/O, 2 x ADAT I/O (optical), Word Clock I/O (BNC)
• 2 x stereo headphone outputs (1/4"), built‑in talkback microphone, LED meters
• Monitor controller with alternate speaker switching, Dim/Mono assignable function
• Support for immersive formats up to 7.1 with Apollo Monitor Correction (speaker calibration)
• Dual‑Crystal Clocking for ultra‑low jitter, cascadable up to 4 Apollos
• Includes Essentials+ plug‑in bundle, external power supply; 19" / 1U rackmount

10 x 6 Thunderbolt 3 Audio Interface

• With UAD-2 Quad processor

• 24-Bit / 192 kHz AD/DA converter

• 2 Unison microphone preamps

• Auto Gain function

• +48V phantom power

• Built-in talkback microphone

• Dynamic range: 127 dB

• Monitor functions with controls for mono, mute, DIM and ALT

• Design: Desktop

• For Mac OS and Windows

• Includes Studio+ Plug-in Bundle

Connectors:

• Microphone / line combo inputs: 2 x XLR / 6.3 mm jack

• Hi-Z instrument input: 6.3 mm jack

• Line outputs: 2 x 6.3 mm jack

• Monitor outputs: 2 x 6.3 mm jack

• ADAT / SPDIF input optical

• Stereo headphone output: 6.3 mm jack

• Thunderbolt 3 connection (Thunderbolt cable not included)

• Input for external power supply

2 x 4 Thunderbolt 3 Audio Interface

• Heritage Edition

• With a SHARC DSP to process the UAD plug-ins without straining the CPU of the host computer

• For PC and Mac

• 24 bit / 192 kHz

• Unison technology for modelling classic tube and transistor-based preamplifiers

• Guitar amps and stomp boxes

• LED Meter

• Pad switch

• Low-cut

• Phase reverse switch

• Link function

• 2 Microphone/Line combo inputs: XLR/Jack 6.3 mm

• Hi-Z instrument input: 6.3 mm jack

• Stereo headphone output: 6.3 mm jack

• 2 Line outputs: 6.3 mm jack (L/R)

• Requires Thunderbolt 3 connector, adapter are not supported

• + 48 V Switchable phantom power

• Powered with Thunderbolt

• Includes software bundles, Desktop Heritage Edition & Realtime Analog Classics

Note: Thunderbolt cable is not included

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 2 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support for surround formats up to 5.1 with speaker calibration and downmix

• Dual Crystal Clocking for a low-jitter environment and pure artefact-free recordings and stable stereo imaging

• Includes Essentials+ Plug-in Bundle for Mac/Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19" / 1U

• Includes external power supply

Connectors:

• 2 Microphone inputs: XLR

• 2 Hi-Z inputs: 6.3 mm jack

• 6 Line inputs: 6.3 mm jack

• 2 Monitor outputs: 6.3 mm jack

• 6 Line outputs: 6.3 mm jack

• S/PDIF input and output: coaxial

• 2 ADAT inputs and outputs

• Word Clock input and output: BNC

• 2 Headphone connections: 6.3 mm stereo jack

• 2 Thunderbolt 3

10 x 6 Thunderbolt 3 Audio Interface

• With UAD-2 Quad processor

• 24 Bit / 192 kHz AD/DA converter

• 2 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Built-in talkback microphone

• Dynamic range: 127 dB

• Monitor functions with controls for mono, mute, DIM and ALT

• Design: Desktop

• For Mac OS and Windows

• Includes Essentials+ Plug-in Bundle

Connectors:

• Microphone/line combo inputs: 2 x XLR / 6.3 mm jack

• Hi-Z instrument input: 6.3 mm jack

• Line outputs: 2 x 6.3 mm jack

• Monitor outputs: 2 x 6.3 mm jack

• ADAT/SPDIF optical input

• Stereo headphone output: 6.3 mm jack

• Thunderbolt 3 connection (Thunderbolt cable not included)

• Input for external power supply

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz

• 6-Core SHARC DSP for internal UAD real-time processing

• 2 Unison microphone preamps

• Auto Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Switch for monitor switching

• Dim or mono assignable function button

• LED meter

• Built-in talkback microphone

• Support for surround formats up to 5.1 with speaker calibration and downmix

• Dual Crystal Clocking for a low-jitter environment and pure artefact-free recordings and stable stereo imaging

• Includes Studio+ Plug-in Bundle for Mac/Windows

• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos cascadable with Thunderbolt connection

• Format: 19" / 1 U

• Includes external power supply

Connectors:

• 2 Microphone inputs XLR

• 2 Hi-Z inputs: 6.3 mm jack

• 6 Line inputs: 6.3 mm jack

• 2 Monitor outputs: 6.3 mm jack

• 6 Line outputs: 6.3 mm jack

• S/PDIF input and output: coaxial

• 2 ADAT inputs and outputs

• Word Clock input and output: BNC

• 2 Headphone connections: 6.3 mm stereo jack

• 2 Thunderbolt 3
