Analogue Loadbox

• Analogue reactive loadbox for guitar tube amplifiers

• Five tuned guitar amp attenuation levels

• Rig control for pre-set microphone and speaker box emulations

• UA Dynamic Speaker Modelling accurately models the behaviour of a speaker and membrane resonances

• Integrated UA EQ compression, delay and reverb effects

• Ohm operation selectable (4, 8, and 16 Ohm)

• Max. power handling: 150 W

• Connectors: Line output 6.3 mm jack balanced

• S/PDIF output

• Headphone output: 6.3 mm jack

• Pairing via WiFi with OX mobile or desktop app to edit and save presets (for Windows 10 and macOS: Sierra or High Sierra)

Loadbox / Attenuator / Speakersim / DI Box

• All-in-one solution

• For perfect recordings of guitar and bass sounds, both on stage and in the studio

• Reactive load resistance

• -20 dB power reducer

• Analogue speaker simulation

• DI box

• 4 Ohm version

• Maximum amplifier power: 100 watts RMS

• Fan cooled

• Solid metal housing

• Compact size

• Perfect for pedalboards

• Front panel: Control for output level, switch for ground lift, instrument & phase, sockets for line output, balanced DI output & power adapter (9 - 24 V DC/5 mA - power supply not included)

• Rear: sockets for Speaker Thru, Speaker Attenuator & Amplifier Input

• Includes GENOME with 5 DynIR captures, 40 microphones, 12 pedals, 12 TSM amps, 17 STUDIO FX, 40 AI amp captures and an expert-selected RIG library

• Dimensions: 175 x 126 x 62 mm

• Weight: 1 kg

Full Analogue Reactive Load Box / Attenuator / Power Amplifier

• Reactive load box with attenuator, Celestion Approved Load Response, and sterep/dual mono 215 W power amplifier

• Attenuator rated up to 200 W RMS

• Selectable multi-impedance compatibility: 4, 8, 16 ohm

• Two channels

• Continuous active attenuation from complete silence to full volume

• Stereo / dual mono power amplifier: 215 W

• Footswitchable stereo FX loop

• Includes GENOME Reload II Cab Sim Plug In with 24 DynIR Virtual Cabinets

• Amp In Level control

• Controls for channels A and B: Cab, Output, Depth, Presence

• FX loops A and B: Dry/Wet

• Push buttons for channels A and B: Mojo

• Switch for channels A and B: Mojo

• Loop level: -10 / +4 dB

• FX Loop Off / On

• Footswitch

• Amp impedance

• Source for channels A and B: Line/Amp

• LED: Solo On

• Impedance: 4, 8 or 16 ohm

• Dimensions (W x D x H): 365 x 240 x 89 mm

• Weight: 6.9 kg

Connections:

• FX loop A and B send: 2 x 6.3 mm jack

• FX loop A and B return: 2 x 6.3 mm jack

• Footswitch: 6.3 mm stereo jack

• Line out A and B: 2 x XLR

• Cab out A and B: 2 x 6.3 mm jack

• Amp in: 6.3 mm jack

Loadbox / Attenuator / Speakersim / DI Box

• All-in-one solution

• For making perfect recordings of guitar and bass sounds, on stage and in the studio

• Reactive load resistance

• -20 dB power reducer

• Analogue speaker simulation

• DI Box

• 8 Ohm model

• Maximum amplifier power: 100 W RMS

• Fan-cooled

• Solid metal housing

• Compact size

• Perfect for pedalboards

• Front panel: Control for output level, switch for ground lift, instrument and phase, sockets for line output, balanced DI output & power adapter (9 - 24 V DC/5 mA - power supply not included)

• Rear side: Sockets for Speaker Thru, Speaker Attenuator and Amplifier Input

• Includes GENOME with 5 DynIR captures, 40 microphones, 12 pedals, 12 TSM amps, 17 STUDIO FX, 40 AI amp captures and an expert-selected RIG library

• Dimensions: 175 x 126 x 62 mm

• Weight. 1 kg

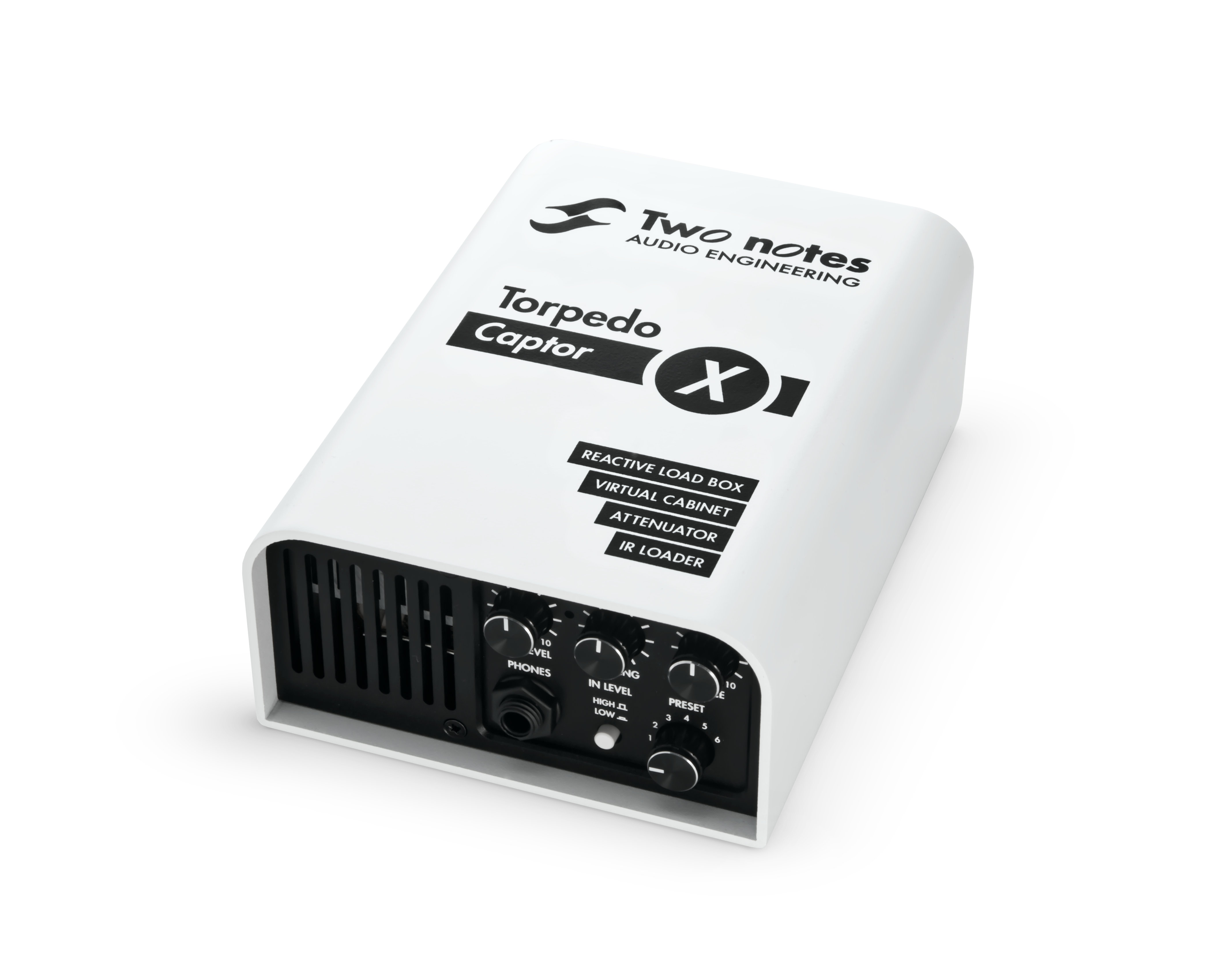

Reactive Loadbox / Attenuator / Speaker Simulator / IR Loader / Stereo Expander

• For home, live, and studio use

• Max. power rating: 100 W RMS

• 16 Ohm model

• For playing a tube amplifier at its "sweet spot" and volume control with attenuator

• New features for Torpedo Captor family include a stereo expander (stereo reverb and double tracker), enhancer, voicing, space, noise gate, and XLR DI outputs with 3 routing options (stereo, dual mono, and dry/wet)

• Includes GENOME with 5 DynIR captures, 40 microphones, 12 pedals, 12 TSM amps, 17 STUDIO FX, 40 AI amp captures and an expert-selected RIG library

• Controls: Space, Voicing, Out Level, Preset

• Push buttons: In Level High/Low, Gnd Lift

• Switch: Volume Full/Low

• Headphone output: 6.3 mm stereo jack

• Speaker intput: 6.3 mm Jack

• Speaker output: 6.3 mm jack

• Left and right output: XLR

• MIDI input: 3.5 mm stereo jack

• USB

• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

• Power supply with a 12 V DC mains adapter (included)

• Dimensions (W x D x H): 128 x 175 x 64 mm

• Weight: 1.3 kg

Reactive Loadbox / Attenuator / Speaker Simulator / IR Loader / Stereo Expander

• For home, live and studio use

• Max. power rating: 100 W RMS

• 8 Ohm model

• For playing a tube amplifier at its "sweet spot" and adjusting the volume with the attenuator

• New functions for the Torpedo Captor family include a stereo expander (stereo reverb and double tracker), enhancer, voicing, space, noise gate and XLR DI outputs with 3 routing options (stereo, dual mono and dry / wet)

• Includes GENOME with 5 DynIR captures, 40 microphones, 12 pedals, 12 TSM amps, 17 STUDIO FX, 40 AI amp captures and an expert-selected RIG library

• Controls: Space, Voicing, Out Level, Preset

• Push buttons: In Level High/Low, Gnd Lift

• Switch: Volume Full/Low

• Headphone output: 6.3 mm stereo jack

• Speaker intput: 6.3 mm Jack

• Speaker output: 6.3 mm jack

• Left and right output: XLR

• MIDI input: 3.5 mm stereo jack

• USB

• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

• Power supply with a 12 V DC mains adapter (included)

• Dimensions (W x D x H): 128 x 175 x 64 mm

• Weight: 1.3 kg

Loadbox/Attenuator/Speakersim/DI Box

• All-in-one solution

• For making perfect recordings of guitar and bass sounds, on stage and in the studio

• Reactive load resistance

• -20 dB power reducer

• Analogue speaker simulation

• DI Box

• 16 Ohm version

• Maximum amplifier power: 100 W RMS

• Fan-cooled

• Solid metal case

• Compact size

• Perfect for pedalboards

• Front panel: Control for output level, switch for ground lift, instrument and phase, sockets for line output, balanced DI output & power adapter (9 - 24 V DC/5 mA - power supply not included)

• Rear side: Sockets for Speaker Thru, Speaker Attenuator & Amplifier Input

• Includes GENOME with 5 DynIR captures, 40 microphones, 12 pedals, 12 TSM amps, 17 STUDIO FX, 40 AI amp captures and an expert-selected RIG library

• Dimensions: 175 x 126 x 62 mm

• Weight: 1 kg
