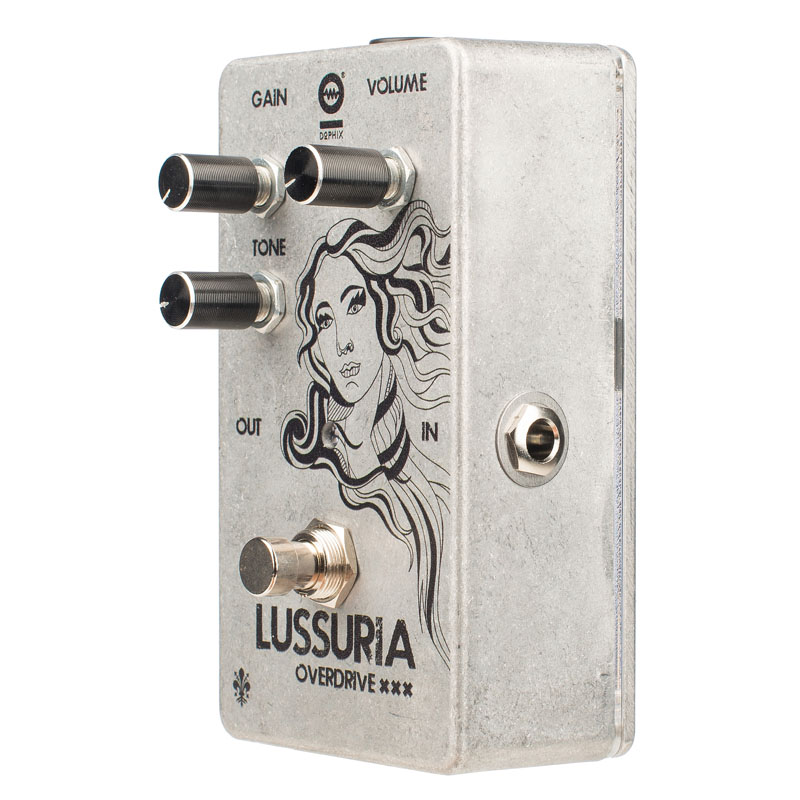

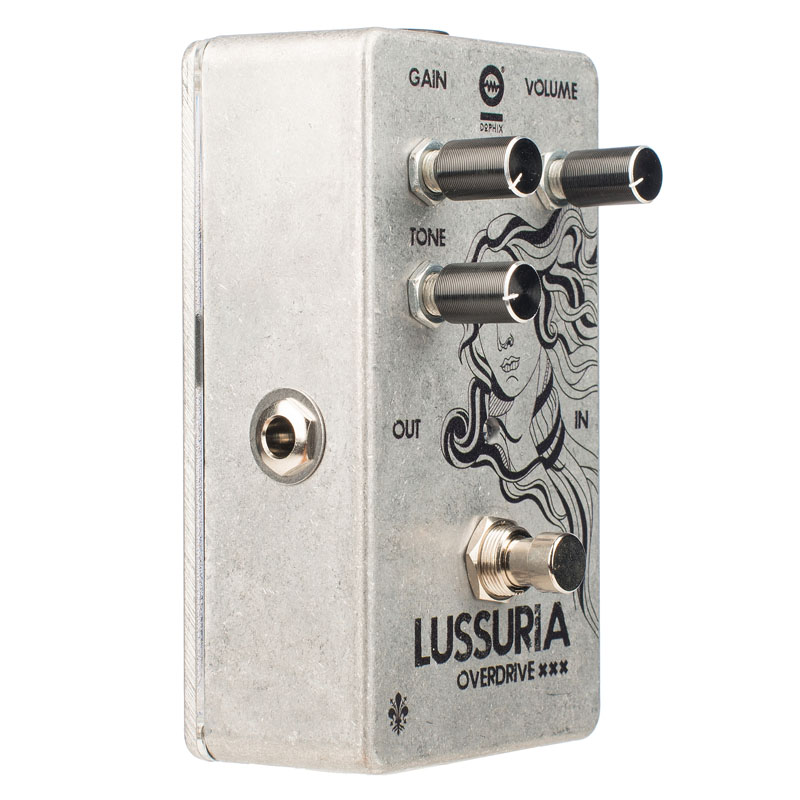

Dophix Lussuria

DESCRIPTION

Very dynamic Overdrive with three controls: volume, tone and gain. The effect allows a complete sound selection: from clean to crunch up to a soft distortion. The sound produced is conferred with a typical character, thanks to a full level control and tone modulation.

Suitable for blues and rock sounds.

Input/output Jack from 6.3 mm 1/4 “placed sideways to the pedal.

TRUE BYPASS switch, carbon resistors and high quality components are one of the specific choices made standard for our pedals. The components are wanted in a product with electronic devices belonging to a vintage series, elements that distinguish a character and a warm and defined sound.

9 volts power supply DC through internal battery or external stabilized power supply.

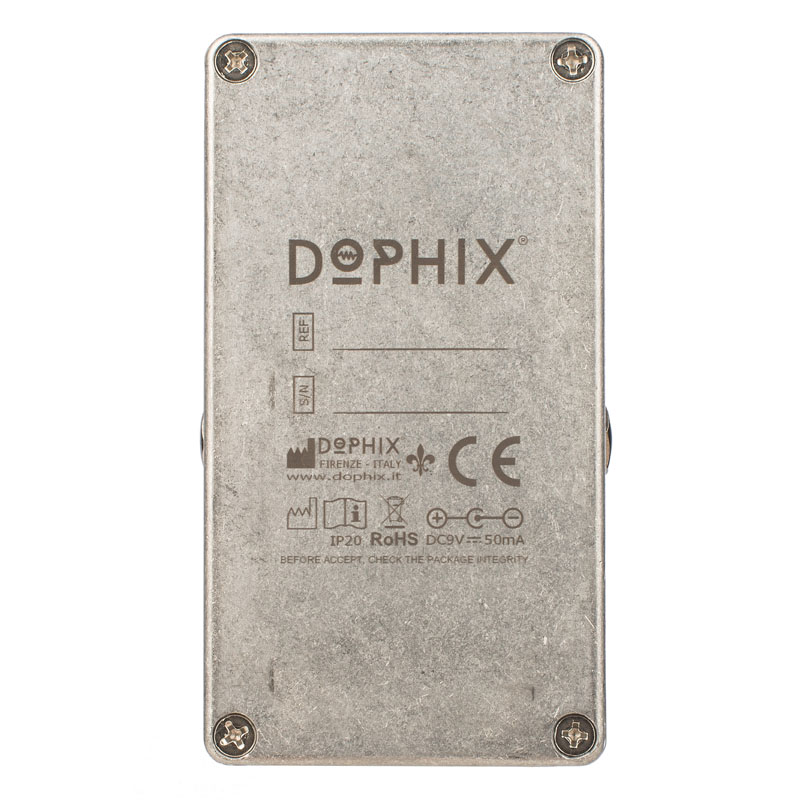

Battery replacement is possible by removing the four screws on the bottom cover.

Input impedance 1 Mohm, output 300 ohm.

Current with LED on 19ma, standby 500 UA.
