Focal Sub12

SUB12

Professional subwoofer

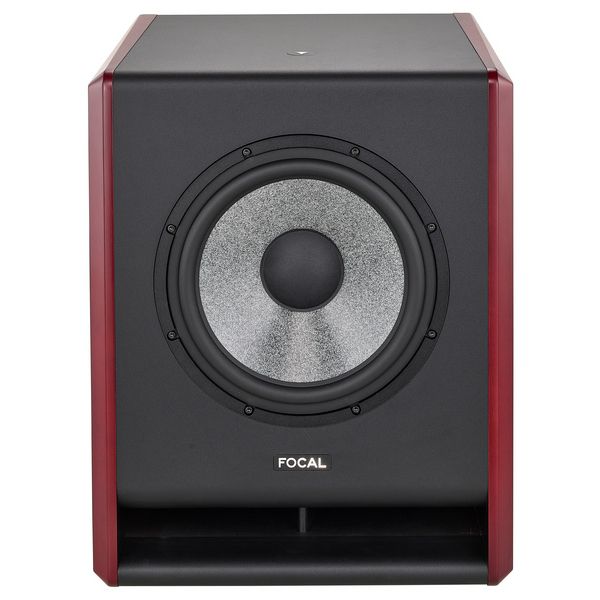

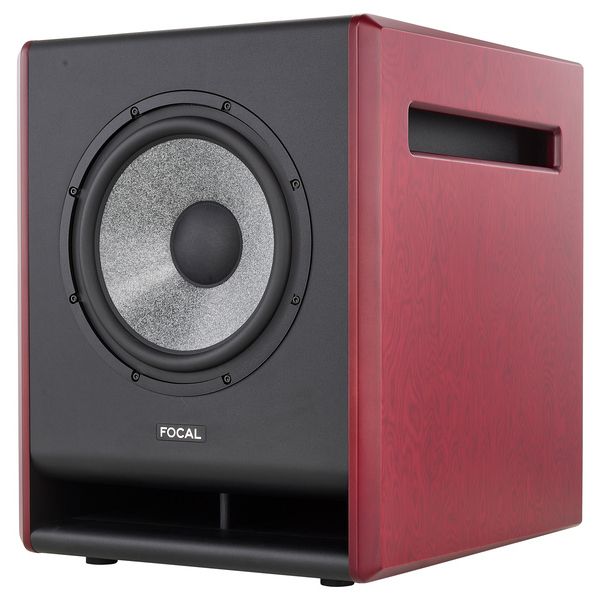

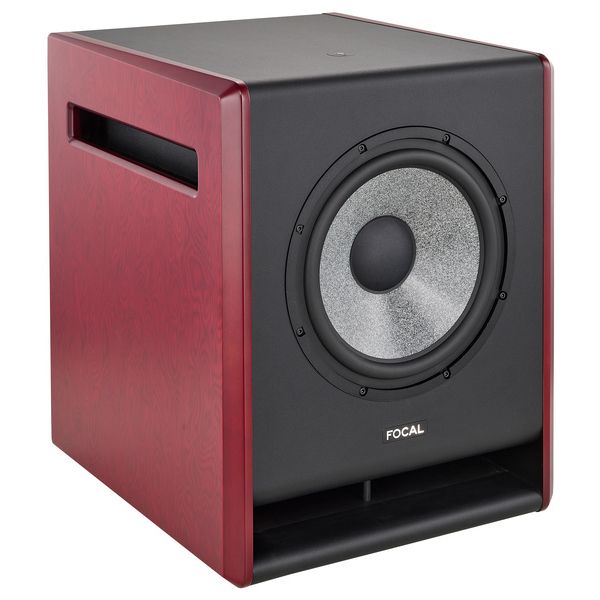

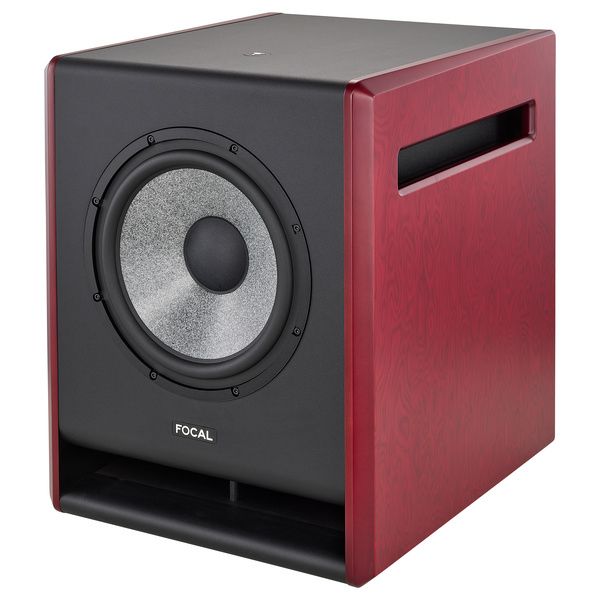

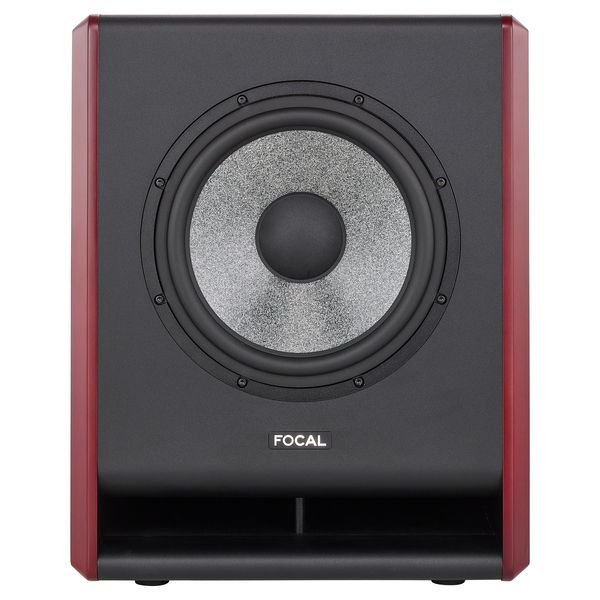

Sub12 benefits from the best of Focal technologies to deliver unparalleled bass articulation and depth. Thanks to its 13" (33 cm) ultra-high-excursion "W" cone driver and its BASH amplifier with 600 W RMS and 1000 W peak-to-peak power, sound reproduction is more impactful and faithful than ever.

• Product type : Monitoring grave box

• Loudspeakers :
  13'' W membrane

• Frequency response (+/- 3dB) :
  28 Hz - 400 Hz

• Maximum SPL (peak@1m) :
  125 dB

• Inputs :
  • Left,Right,LFE
  • XLR: symmetrical 10 kOhms
  • Variable

• LED :
  • Power on
  • Mute
  • Hi-pass defeat

• Local supply :
  ~100-120 V, T2.5AL/250 V
  ~220-240 V, T1.25AL/250 V

• Power on/of : On/Off switch on the rear panel

• Mid-range and low frequency amplifier :
  600 W, class G

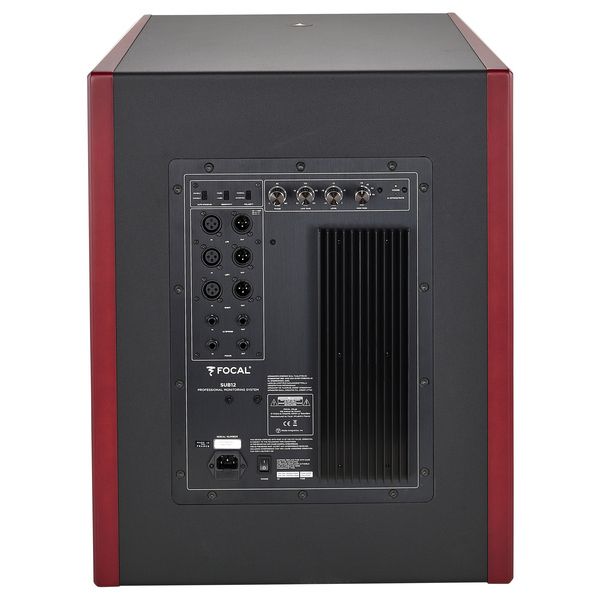

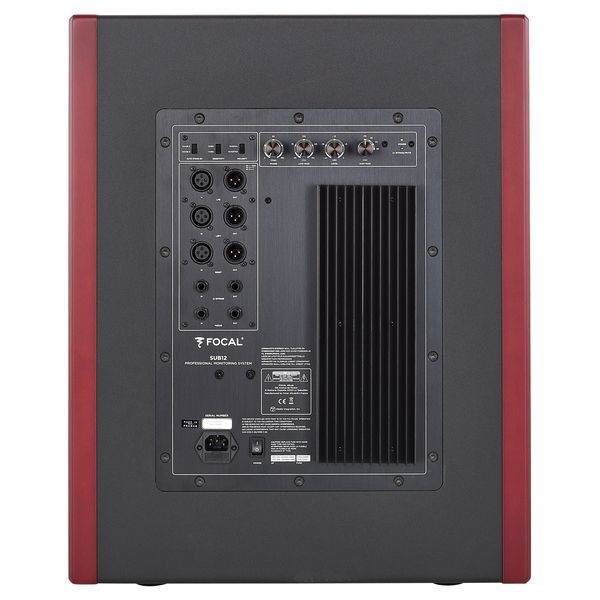

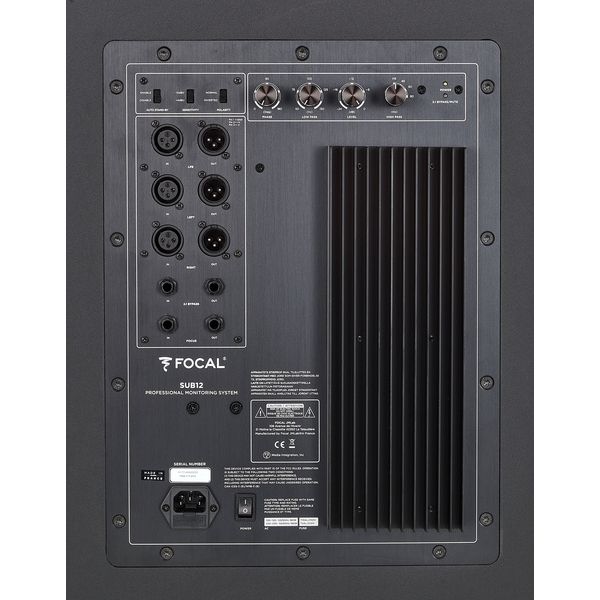

• Indicators and controls :
  • Sub level (sensitivity) adjustment
  • Lo-passe frequency adjustment
  • Phase adjustment
  • Polarity switch
  • Mute
  • 2.1 bypass (controlled by external footswitch)
  • Hi-pass frequency selection
  • Hi-pass defeat

• Height : 60 cm / 23.6 in

• Width : 48.7 cm / 19.2 in

• Depth : 56.8 cm / 22.4 in

• Weight : 58 kg / 127.8 livre
