Description

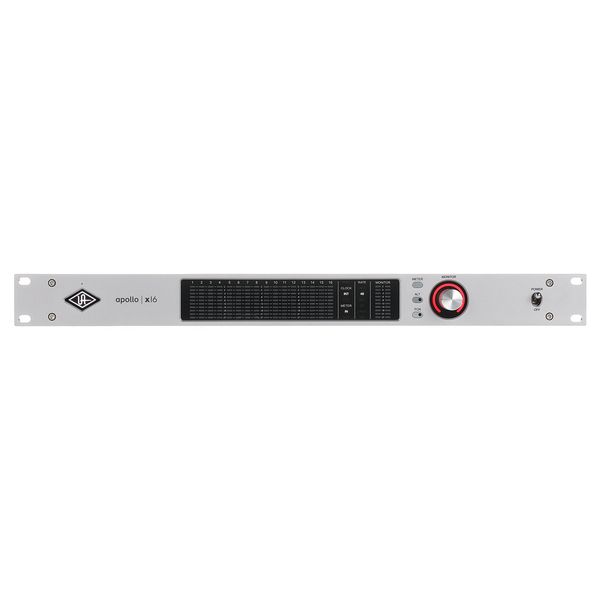

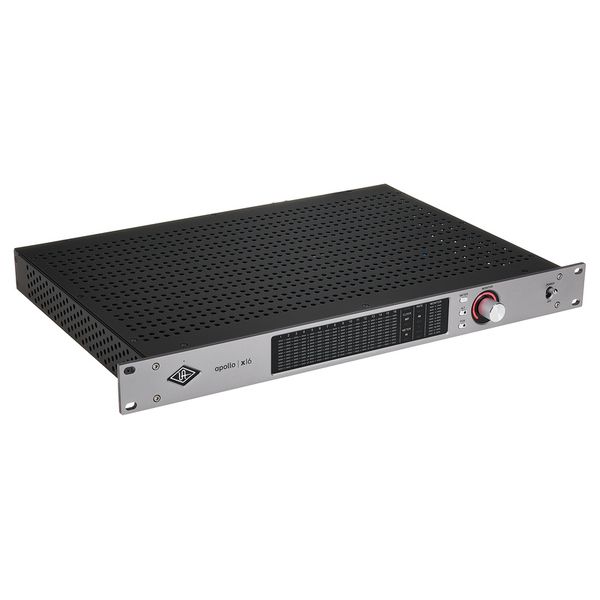

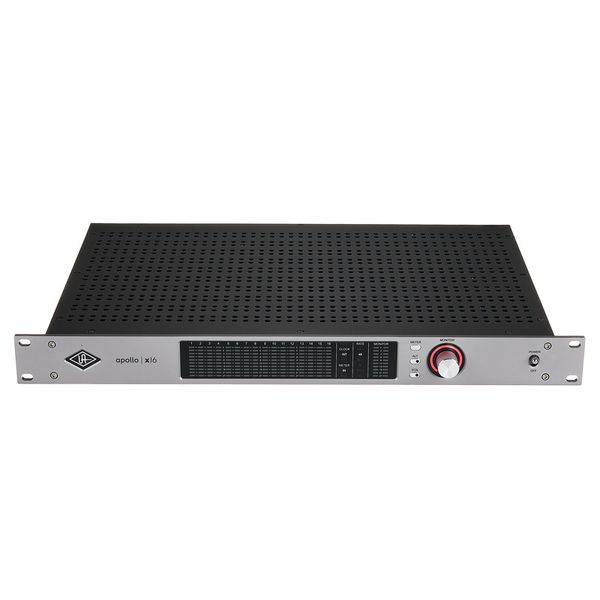

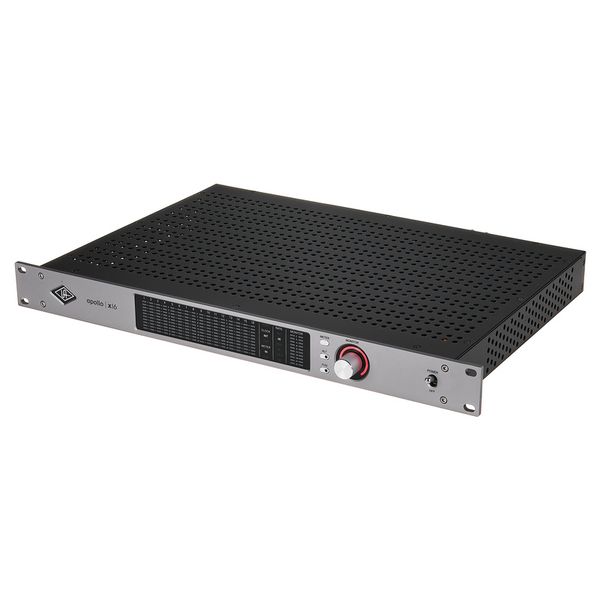

18 x 20 Thunderbolt 3 Audio Interface
24 Bit / 192 kHz
6-Core SHARC DSP for internal UAD real-time processing
Auto Gain function
Switch for monitor switching
Dim or mono assignable function button
LED meter
Built-in talkback microphone
Support of surround formats up to 7.1 with speaker calibration and downmix
Dual Crystal Clocking for a low-jitter environment and pure, artefact-free recordings as well as stable stereo imaging
Includes Essentials+ Plug-in Bundle for Mac/Windows
Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
Up to 4 Apollos cascadable with Thunderbolt connection
Format: 19"/1U
Includes external power supply unit

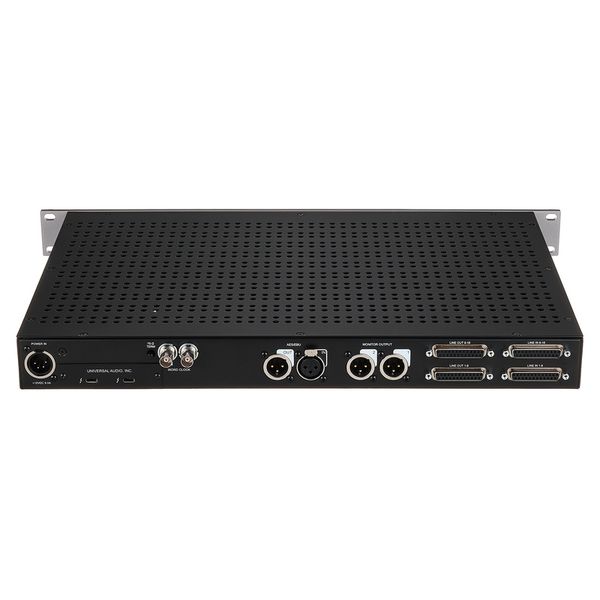

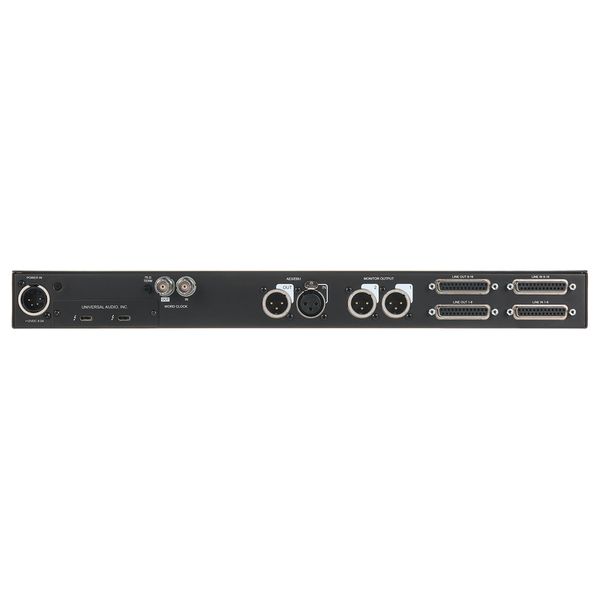

Connectors:
16 Line inputs Sub-D25
2 Monitor outputs XLR
16 Line outputs Sub-D25
AES/EBU input and output
Word Clock input and output BNC
2 Thunderbolt 3
