Description
18 x 24 Thunderbolt 3 Audio Interface
24 Bit / 192 kHz
6-Core SHARC DSP for internal UAD real-time processing
4 Unison microphone preamps
Auto Gain function
+48 V phantom power
Pad
Low-cut
Phase reverse
Switch for monitor switching
Dim or mono assignable function button
LED meter
Built-in talkback microphone
Support of surround formats up to 7.1 with speaker calibration and downmix
Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging
For Mac and Windows
Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
Up to 4 Apollos cascadable with Thunderbolt connection
Format: 19" / 1U
Includes Studio+ plug-in bundle and external power supply

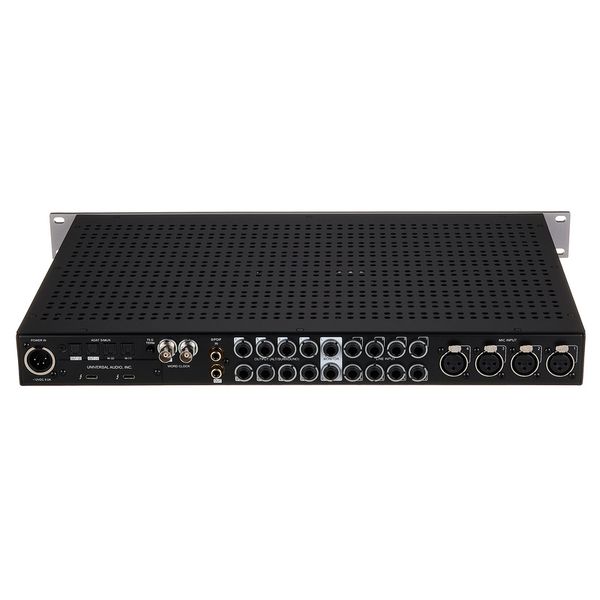

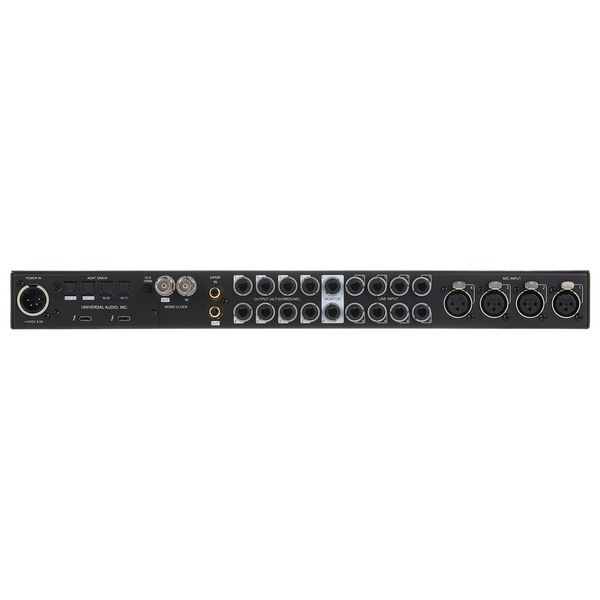

Connectors:
Microphone inputs: 4 x XLR
Hi-Z inputs: 2 x 6.3 mm jack
Line inputs: 8 x 6.3 mm jack
Monitor outputs: 2 x 6.3 mm jack
Line outputs: 8 x 6.3 mm jack
S/PDIF input and output coaxial
2 x ADAT input and output
BNC Word clock input and output
Stereo headphone connections: 2 x 6.3 mm jack
2 x Thunderbolt 3
