Focal SHAPE 40

Shape 40

Monitoring speaker

Shape 40 is the ideal answer for close monitoring. Thanks to exclusive Focal innovations, this professional work tool offers a wide frequency range in the bass and precise control, right down to the extreme treble. Whether it's a room smaller than 10 m², or an installation where compactness is paramount, Shape 40 is the solution.

• Product type : 2-way monitor

• Loudspeakers :
  • Woofer : 4" Flax membrane
  • Tweeter : 1" Aluminium-Magnisium M shaped dome

• Frequency response (+/- 3dB) :
  60 Hz - 35 kHz

• Maximum SPL (peak@1m) :
  102 dB

• Bass/midrange level (160 Hz) : Adjustable, +/-3 dB

• Inputs :
  • XLR: symmetrical 10 kOhms
  • RCA: asymmetrical 10 kOhms with compensanted sensitivity

• High-pass filter :
  Full range, 80 Hz

• LED :
  Power On LED

• Local supply :
  220-240V (T500mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse)

• High frequency amplifier :
  25 W, class AB

• Bass level (>250Hz) : Adjustable +/-6dB

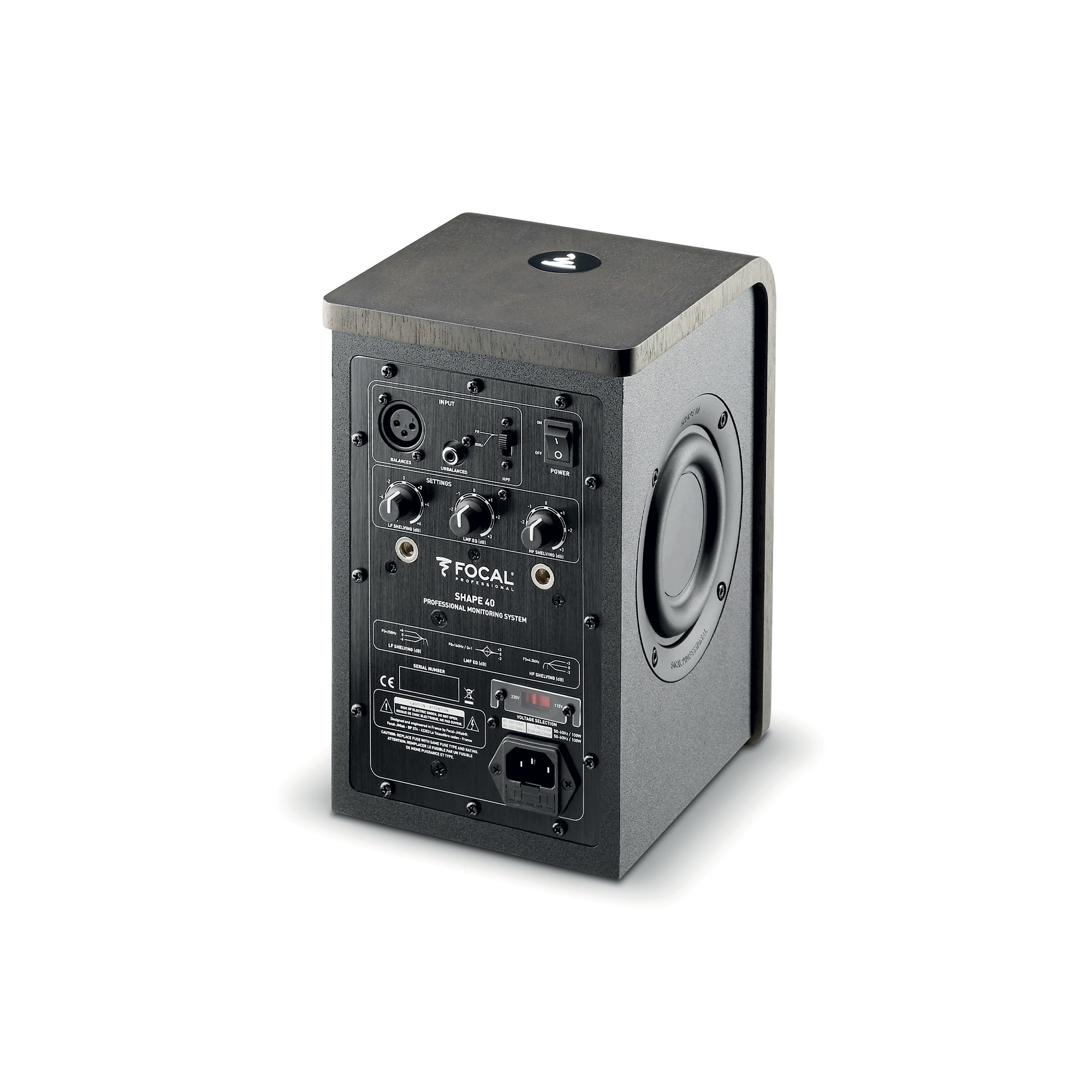

• Power on/of : On/Off switch on the rear panel

• Mid-range and low frequency amplifier :
  25 W, class AB

• Treble level (< 4.5kHz) : Adjustable +/-3dB

• Indicators and controls :
  • HPF, LF Shelv, LMF EQ, HF Shelv

• Height : 25.7 cm / 10.1 in

• Width : 16.1 cm / 6.3 in

• Depth : 20 cm / 7.9 in

• Weight : 5 kg / 16.1 livre
