16 x 22 Thunderbolt 3 Audio Interface
24 Bit / 192 kHz
6-Core SHARC DSP for internal UAD real-time processing
8 Unison microphone preamps
Auto Gain function
+48 V phantom power
Pad
Low-cut
Phase reverse
Switch for monitor switching
Dim or mono assignable function button
LED meter
Built-in talkback microphone
Support of surround formats up to 7.1 with speaker calibration and downmix
Dual Crystal Clocking for low-jitter environment and pure, artifact-free recordings as well as stable stereo imaging
For Mac and Windows
Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
Up to 4 Apollos cascadable with Thunderbolt connection
Format: 19" / 1U
Includes Essentials+ plug-in bundle and external power supply

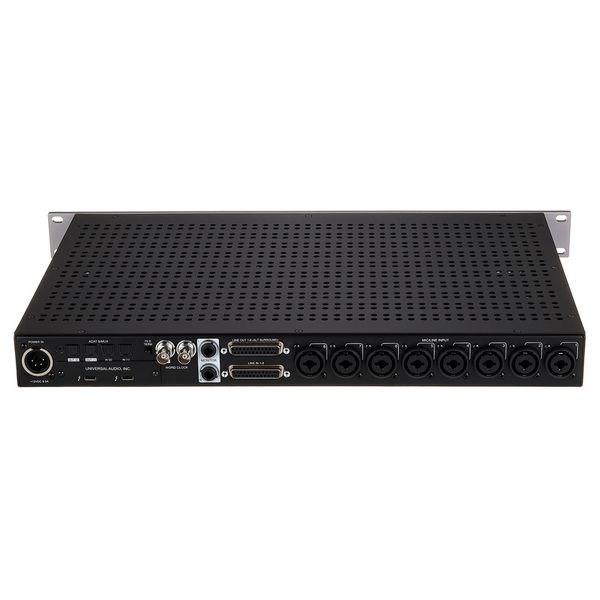

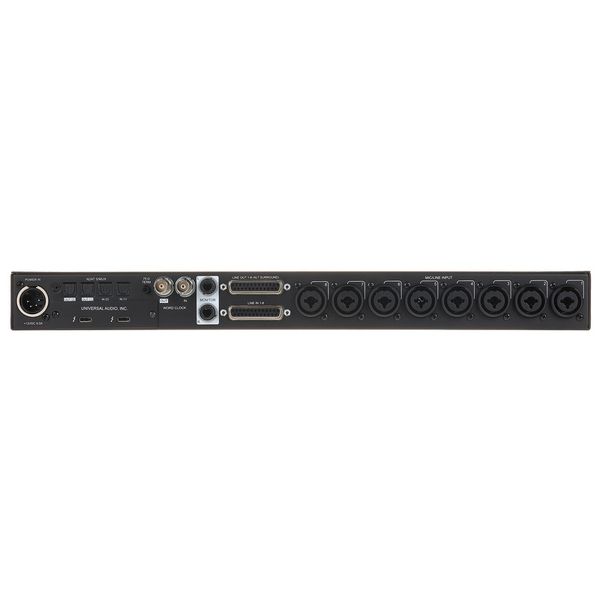

Connectors:
Microphone / line combo inputs: 8 x XLR / 6.3 mm jack
Hi-Z inputs: 2 x 6.3 mm jack
Line inputs: 8 x Sub-D25
Monitor outputs: 2 x 6.3 mm jack
Line outputs: 8 x Sub-D25
2 x ADAT inputs and outputs
BNC Word clock input and output
Stereo headphone connections: 2 x 6.3 mm jack
2 x Thunderbolt 3 sockets
